Access Control Products
JK Tech CO LTD's intelligent access control products made with care and precision in China. From normal key card lock, BLE hotel lock product and BLE access control readers to energy saving switches and lift controllers, they feature with convenience of keyless RFID technology and security, working in the similar way of contactless credit cards and debit cards.
On one aspect, hotel, leisure place, university and accommodation should be controlled by a comprehensive access control system. And all our access control products and solutions can be managed by managed by related locking management system, including standalone locking management platform and bluetooth online locking management system. Configurable precisely to your building and door layout, JK Tech software allows you to create keys at your own PC or laptop. This means there is no need of a physical connection between your locks and the computer.
For extra convenience, our next generation Mobile Key Access technology uses your smartphone to activate the lock, via a secure Bluetooth low energy link. This revolutionary system removes the need for physical keys altogether.
On the other aspect, JK Tech CO LTD also takes care about the biometric residential lock that need not complicated software for residence. We let people easy to leave home and easy to open door without a metal key just by finger, PIN code, key card or smartphone Apps.
biometric lock for residence no need software,stable and safe for long time use
Model A701, biometric lock specification:
- Power supply: powered by 4 pieces of standard DC1.5V AA (LR6) alkaline batteries / Lithium polymer batteries (user should purchase the quality batteries locally);
- Working voltage:DC4.5V-6.5V, if less then DC4.8V, low battery warning will be made.
- Static current: < 20μA;
- Dynamic current: < 180mA;
- Storage condition: 0℃ to 80℃; keep dry; avoid exposure of acid and alkaline chemical; avoid frozen; avoid exposure of directly in sunshine (Ultraviolet ray in sunshine will damage the molecule structure of plastic and make the plastic parts on the lock become crispy and fragile gradually.); Humidity: 10~90% RH
- Working temperature:-20℃ to +60℃; ideal working temperature: 15 to 25; notice: if atmosphere temperature is lower than 4℃ or higher than 40℃, batteries performance will become weaker please consult your battery supplier for details;
- Fingerprint capacity / storage: 99 pieces of fingerprint;
- Password capacity / storage: 2 groups;
- Real password length: 6 digits for each group; Virtual password input mode: MAX length 30digit, agaist peep by the people standing beside user;
- Self-lock mode: activated after 3 times wrong password input;
- Embedded door bell: support;
- Key card type: mifare one S50 1K or mifare S70 4K, standard ISO14443A;
- Key card capacity / storage: 200 pieces;
- Emergency backup: DC5V emergency external micro USB charge port support in case of running out of power;
- Backup master metal key support;
- Gross weight: 4.5kg/lockset.
key card lock general specification:
- Power supply:powered by 4 pieces of standard DC1.5V AA (LR6) alkaline batteries / Lithium polymer batteries (user should purchase the quality batteries locally);
- Working voltage:4.5V-6.5V, if less than 4.8V, low battery warning will be made;
- Static current: < 20μA (offline type); < 40μA (bluetooth type);
- Dynamic current: < 100mA (offline type); < 160mA (bluetooth type);
- Storage condition: 0℃ to 80℃; keep dry; avoid exposure of directly in sunshine (Ultraviolet ray in sunshine will damage the molecule structure of plastic and make the plastic parts on the lock become crispy and fragile gradually.); avoid exposure of acid and alkaline chemical; avoid frozen; Humidity: 10~90% RH;
- Working temperature:-20℃ to +60℃; ideal working temperature: 15 to 25; notice: if atmosphere temperature is lower than 4℃ or higher than 40℃, batteries performance will become weaker please consult with your battery supplier for details;
- bluetooth key function:optional, compatible with BLE4.0 / 4.1 /4.2;
- RFID card working Frequency:13.56M Hz;
- RFID Card reading distance: 0 to 5cm (will be affected by real electromagnetic environment)
- self-locking protection feature: when swipe valid key card if user doesn't open the door within 3 seconds, the door will be locked again automatically.
- Low voltage warning:When working voltage of AA batteries is lower than around DC4.8V, when presenting management cards like master card, floor card, building card,etc (excluding guest card), the LED indicator of the door lock will flicker red and buzzer will sound while unlocking the door to remind the administrator of replacing old batteries with new ones. When such situation happens, the lock can still be opened around 50-100 times before power's running out.
- eeprom record storage:1000pieces of recent open record
- Gross weight:3.5-4kg /lockset including package

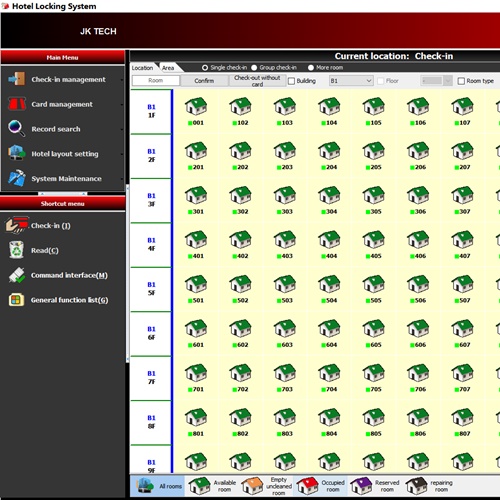

L3/L4 offline locking management system features
- User friendly layout log in records;
- Issue records trackable;
- Individual lock access records trackable;
- Networkable, multiple front desk staff can work simultaneously in respetive front desk PC;
- Varied security levels, different staff have different level to access specific module;
- Ability to block individual cards, system can report loss specific card;
- Multiple building management: Maximumly 255 buildings;
- Ability to manage numbers of locks: Maximumly 65025 rooms at one building;
- Ability to issue different kinds of cards, for instance cleaner cards, waiter cards and whole floor cards, Install Card/Installation Card, Clock Card, Area Card, Building Card, Gate Card, Floor Card, Emergency card, Master Card, Spare Card, Data Card(to retrieve door lock information or door lock record), Check-out Card, Meeting Card, Stop Card, Report Loss Card, Visitor Card, Power Card(only to gain power from energy saving switch but cannot open door lock or access reader) and Authorised Card/Authorized Card;
- Ability to complete access management of both guests and staff;
- Ability to work alongside Property Management Systems (PMS) Micros Fidelio;
- to config with offline lock which is stable and lower cost than online lock;
- language translation interface available;
- Ability to let one guest card to open maximal the electronic lock of 7 guest rooms;

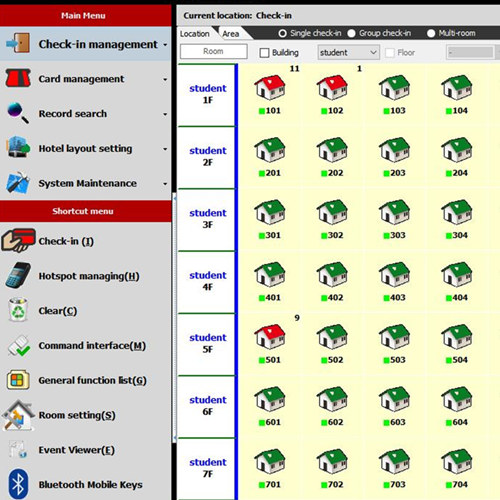

mobile key locking management system features
- Inherited all features of L4
- physical equipment:comprise one or two online access control readers for each public door (optional component), electronic door lock of L6 system (firmware) for each guest room and cloud server license(ask JKtech for license code)
- compatibility: compatible with door lock of L4 offline locking management system and L6 bluetooth mobile key system on offline lock usage; (as some users will only adopt offline lock function)
- cost-effective solution of controlling mobile keys and conventional RFID key cards, suitable for the facilities of large area and numbers of users, like school accommodation, hotel, factory etc;
- Ability to remotely cut mobile key for guests bypassing front desk;
- Ability to remotely extend valid time for mobile key for guests bypassing front desk;
- Ability to remotely disable mobile key;
- Ability to adopt full utility of RFID card system if network does not work;
- Ability to remotely retrieve door lock open record every 60minutes automatically from cloud server;
- All in all, save time for guests to go to front desk and save cost for admin to manage the door locks and keys

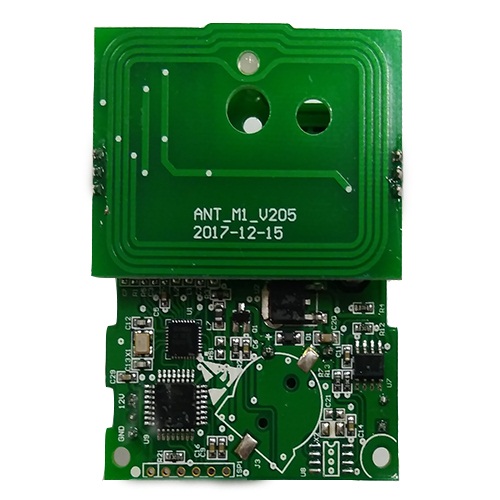

We accept orders of customized printed circuit board(PCB) for access control equipment
Sometimes customers require some special custom-made electronic PCB for special access control project. For example, customized safe box controller PCB, access reader PCB.
Following items is needed for order of custom-built printed circuit board(PCB)
- BOM(Bill of Material);
- sample printed circuit board (PCB)
-
debug or test tools, like relevant software or electronic equipment;
debug or test method and procedure; - MOQ (Minimum Order Quantity) can be negotiated;
