Electronic door lock mortise(door lock case) configed for smart hotel locks and smart resident locks

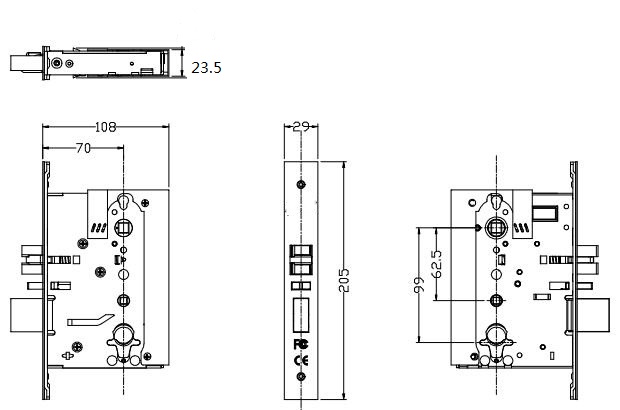

ANSI 5 latches mortise:model M1

• type:electronic mortise lock case for hotel lock or DIY lock with 8pin IDE connector
• recommended door thickness: adaptable from 38mm to 55mm
• backset:70mm
  (PS:there are two common backsets for ANSI door locks, 2-3/8"inch(about 60mm) and 2-4/3"(about 70mm). The backset is the distance from the edge of the door to the center of the bore hole.)
• distance:99mm
  (PS:"Distance" means the distance between the center of the handle lever hole to the center of door lock cylinder.)
• mortise thickness:23.5mm
  mortise width:108mm
• face plate width:29mm
  face plate length:205mm
  face plate appearance:American 70mm back set, square fore end
• material:SUS304 stainless steel and SECC(Steel Electrolytic Cold Common) and galvanized zinc alloy
• mechanical privacy(double lock):available
• net weight:1.05kg
• adaptable electronic door lock model: S8, Waterproof S8L, Z162, Z166, J155, S118

click here to check how to change handling direction of mortise

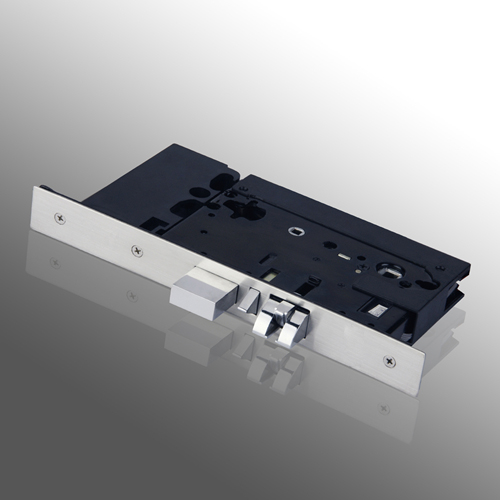

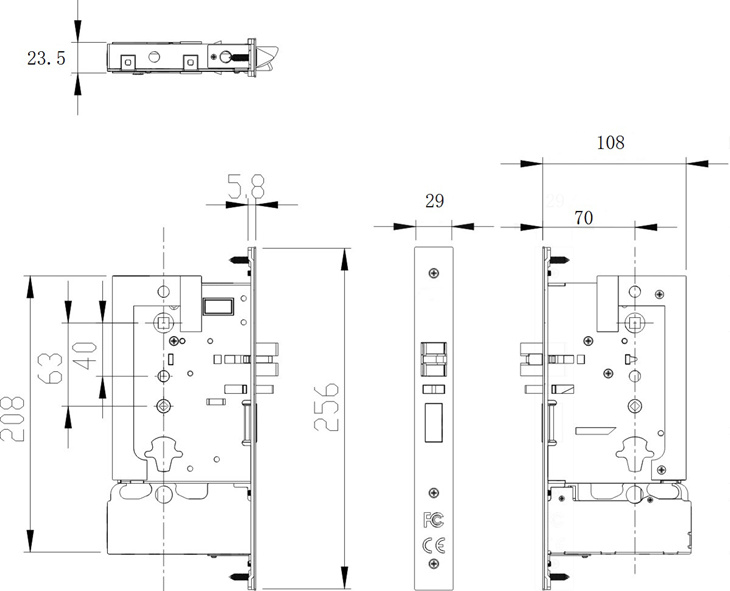

ANSI 5 latches mortise:model M1P

• type:electronic mortise lock case for hotel lock or DIY lock with 8pin IDE connector;
  with embedded batteries house
• recommended door thickness: adaptable from 38mm to 55mm
• backset:70mm
  (PS:there are two common backsets for ANSI door locks, 2-3/8"inch(about 60mm) and 2-4/3"(about 70mm). The backset is the distance from the edge of the door to the center of the bore hole.)
• distance:99mm
  (PS:"Distance" means the distance between the center of the handle lever hole to the center of door lock cylinder.)
• mortise thickness:23.5mm
  mortise width:108mm
  face plate appearance:American 70mm back set, square fore end
• face plate width:29mm
  face plate length:256mm
• material:SUS304 stainless steel and SECC(Steel Electrolytic Cold Common) and galvanized zinc alloy
• mechanical privacy(double lock):available
• embedded batteries house:available
• net weight:1.24kg
• adaptable electronic door lock model:elegant hotel lock N3

click here to check how to change handling direction of mortise

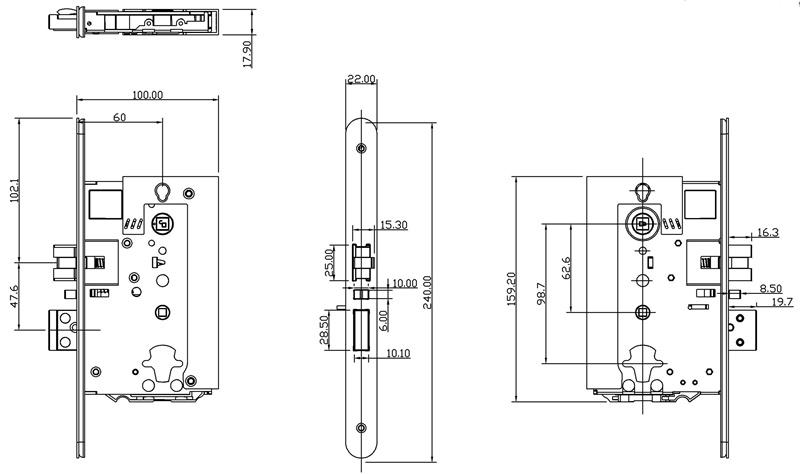

model:M3

• type:electronic mortise lock case for hotel lock or DIY lock with 8pin IDE connector;

• recommended door thickness: adaptable from 30mm to 55mm
• backset:60mm (2.36inches)
  (PS:there are two common backsets for ANSI door locks, 2-3/8"inch(about 60mm) and 2-4/3"(about 70mm). The backset is the distance from the edge of the door to the center of the bore hole.)
• distance:99mm
  (PS:"Distance" means the distance between the center of the handle lever hole to the center of door lock cylinder.)
• mortise thickness:17.9mm
  mortise width:about 100mm (99.7mm)
• face plate width:22mm
  face plate length:240mm
  face plate appearance:European 60mm back set, radial fore end
• material:SUS304 stainless steel and SECC(Steel Electrolytic Cold Common)
• mechanical privacy(double lock):available
• embedded batteries house:not available
• net weight:0.9kg
• adaptable electronic door lock model: Classic S8, Waterproof S8L, Z162, Z166, J155, S118, Z711

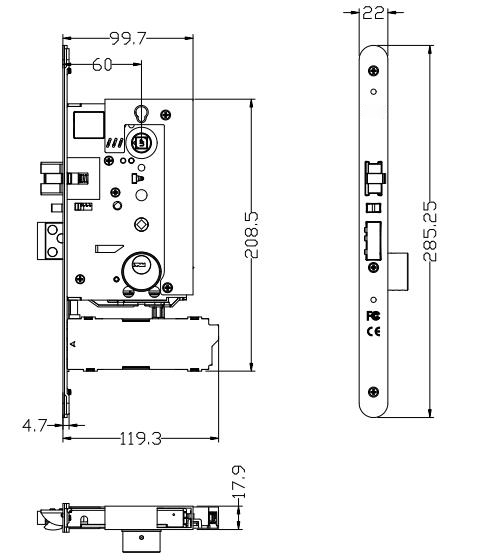

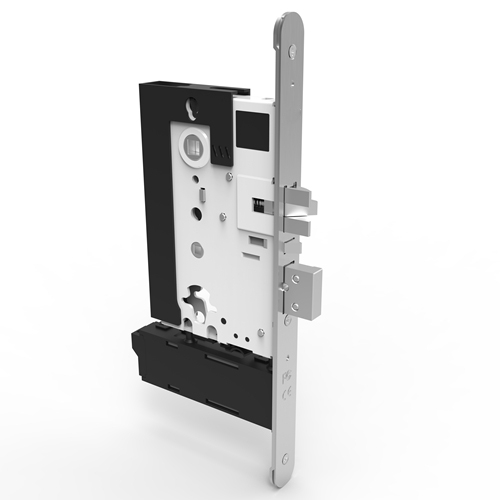

model:M3P

• type:electronic mortise lock case for hotel lock or DIY lock with 8pin IDE connector;
  with embedded batteries house
• recommended door thickness: adaptable from 30mm to 55mm
• backset:60mm
  (PS:there are two common backsets for ANSI door locks, 2-3/8"inch(about 60mm) and 2-4/3"(about 70mm). The backset is the distance from the edge of the door to the center of the bore hole.)
• distance:99mm
  (PS:"Distance" means the distance between the center of the handle lever hole to the center of door lock cylinder.)
• mortise thickness:17.9mm
  mortise width:about 100mm (99.7mm)
• face plate width:22mm
  face plate length:285mm
  face plate appearance:European 60mm back set, radial fore end
• material:SUS304 stainless steel and SECC(Steel Electrolytic Cold Common)
• mechanical privacy(double lock):available
• embedded batteries house:available
• net weight:1.03kg
• adaptable electronic door lock model: Elegant hotel card lock N3

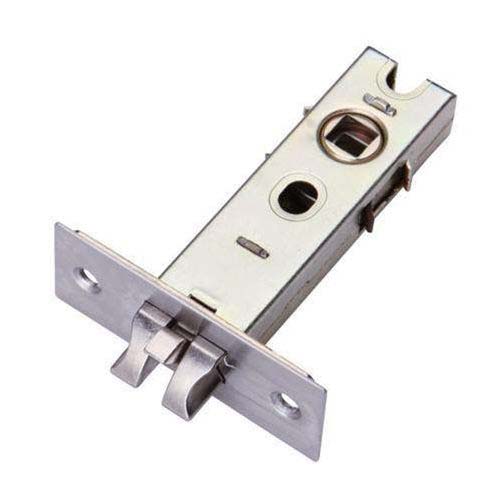

model:MLE2

• type:Tubular latch mortise lock case

• recommended door thickness: adaptable from 30mm to 55mm
• backset:60mm(2.36inches) or 70mm(2.76inches) adjustable
  (PS:there are two common backsets for ANSI door locks, 2-3/8"inch(about 60mm) and 2-4/3"(about 70mm). The backset is the distance from the edge of the door to the center of the bore hole.)
• material:SUS304 stainless steel and SECC(Steel Electrolytic Cold Common)
• mechanical privacy(double lock):available
• embedded cylinder:hidden inside lever
• net weight:0.2kg
• adaptable electronic door lock model:DIY LEL2

model:M6068A

Feature:
• SUS304 stainless steel deadbolt and mortise case
• adaptable for the door thickness from 30mm to 60mm
• adaptable for European profile cylinder
• fire-resistant
• mechanical privacy(double lock): available
• embedded electronic motor

Basic parameters:
• spindle diameter:8mm*8mm
• distance:68mm
• backset:60mm (PS:The backset is the distance from the edge of the door to the center of the bore hole.)
• net weight:1kg
• adaptable electric door lock model:M12-MDT, 138BIO,Z701
• face plate thickness:3mm
• face plate size:240mm*24mm
• finish:satin silver

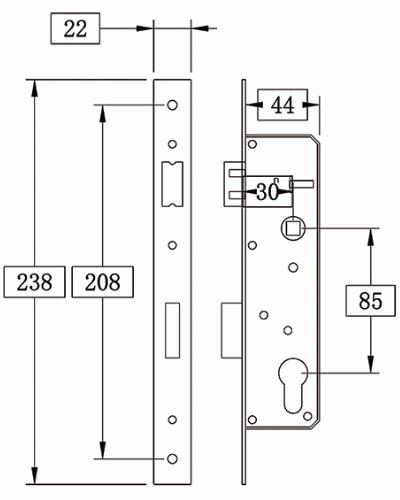

model:S238-3085 Side Single

Feature:
• pure mechanical mortise for electronic lock, adaptable for European profile cylinder;
• adaptable door type: side hung door whose inner frame is at least 44mm on depth;
• SUS304 stainless steel deadbolt and mortise case;
• face plate dimension:238*22mm;
  face plate thickness:2.5mm;
• mortise backset:30mm (PS:The backset is the distance from the edge of the door to the center of the bore hole.);
  mortise distance:85mm;
  mortise width (excluding face plate):44mm;
• fire-resistant
• mechanical privacy(double lock): available,handle lift up to pull out
• spindle diameter:8mm*8mm
• net weight:0.55kg
• adaptable electric door lock model:X300, X330, X1, X8, X550, X600
• finish:satin silver

model:D270-3085 Side multipoint

Feature:

• pure mechanical mortise for electronic lock, adaptable for European profile cylinder,with multipoint hook for additional mortise;
• adaptable door type: side hung door whose inner frame is at least 44mm on depth;
• SUS304 stainless steel deadbolt and mortise case;
• face plate dimension:270*22mm;
  face plate thickness:2.5mm;
• mortise backset:30mm (PS:The backset is the distance from the edge of the door to the center of the bore hole.);
  mortise distance:85mm;
  mortise width (excluding face plate):44mm;
• fire-resistant
• mechanical privacy(double lock): available,handle lift up to pull out
• spindle diameter:8mm*8mm
• net weight:0.56kg
• adaptable electric door lock model:X300, X330, X1, X8, X550, X600
• finish:satin silver

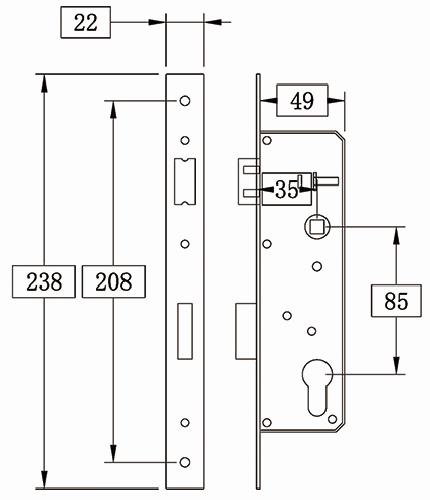

model:S238-3585 Side Single

Feature:
• pure mechanical mortise for electronic lock, adaptable for European profile cylinder;
• adaptable door type: side hung door whose inner frame is at least 49mm on depth(recommended 50mm);
• SUS304 stainless steel deadbolt and mortise case;
• face plate dimension:238*22mm;
  face plate thickness:2.5mm;
• mortise backset:35mm;
  mortise distance:85mm;
  mortise width (excluding face plate):49mm;
• fire-resistant
• mechanical privacy(double lock): available,handle lift up to pull out
• spindle diameter:8mm*8mm
• net weight:0.56kg
• adaptable electric door lock model:X30, X33, X1, X8, X55, X60
• finish:satin silver

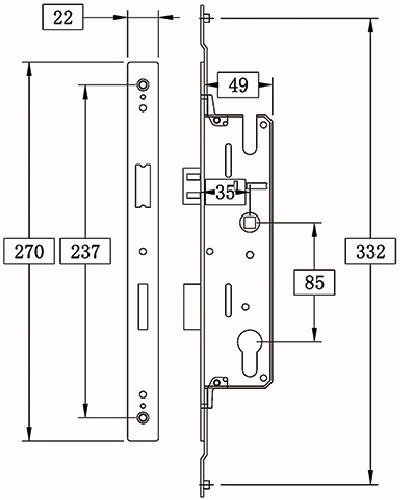

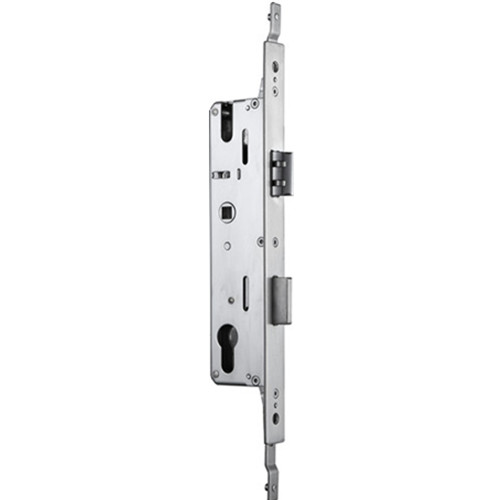

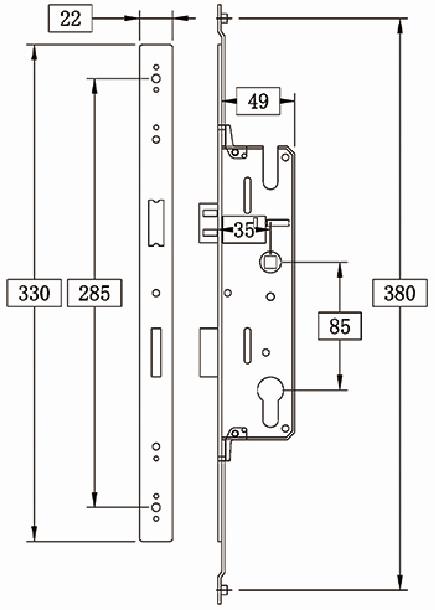

model:D270/330-M3585 Side multipoint

Feature:
• pure mechanical mortise for electronic lock, adaptable for European profile cylinder,with multipoint hook for additional mortise;
• support multipoint mortise;
• adaptable door type: side hung door whose inner frame is at least 49mm on depth(recommended 50mm);
• SUS304 stainless steel deadbolt and mortise case;
• face plate dimension:option 1:270*22mm, option 2:330*22mm;
  face plate thickness:2.5mm;
• mortise backset:35mm;
  mortise distance:85mm;
  mortise width (excluding face plate):49mm;
• fire-resistant
• mechanical privacy(double lock): available,handle lift up to pull out
• spindle diameter:8mm*8mm
• net weight:0.58kg
• adaptable electric door lock model:X30, X33, X1, X8, X55, X60
• finish:satin silver

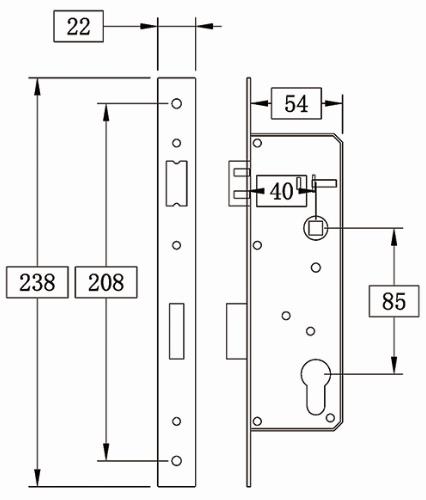

model:S238-4085 Side Single

Feature:

• pure mechanical mortise for electronic lock, adaptable for European profile cylinder;
• adaptable door type: side hung door whose inner frame is at least 54mm on depth;
• SUS304 stainless steel deadbolt and mortise case;
• face plate dimension:238*22mm;
  face plate thickness:2.5mm;
• mortise backset:40mm (PS:The backset is the distance from the edge of the door to the center of the bore hole.);
  mortise distance:85mm;
  mortise width (excluding face plate):54mm;
• fire-resistant
• mechanical privacy(double lock): available,handle lift up to pull out
• spindle diameter:8mm*8mm
• net weight:0.57kg
• adaptable electric door lock model:X300, X330, X1, X8, X550, X600
• finish:satin silver

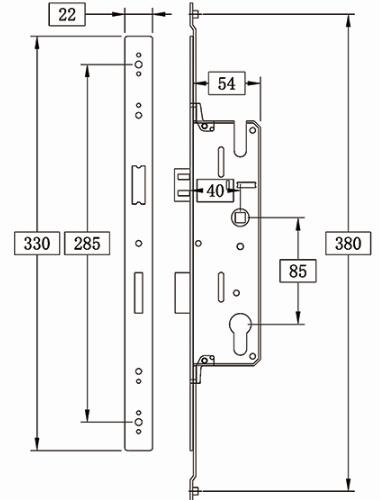

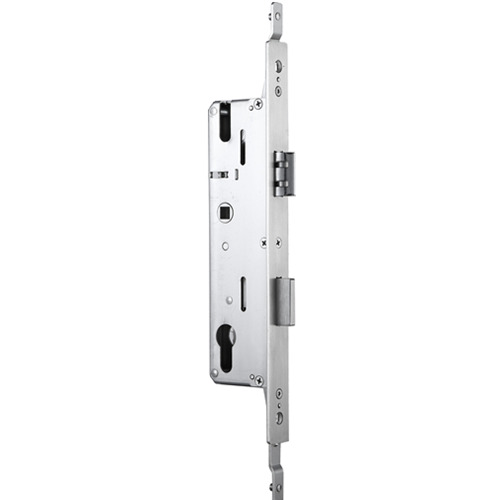

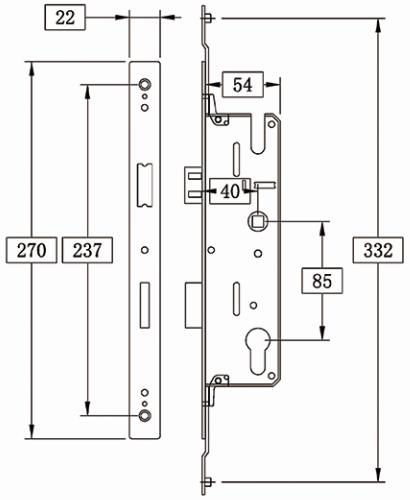

model:4085-270/330 Side multi

Feature:
• pure mechanical mortise for electronic lock, adaptable for European profile cylinder,with multipoint hook for additional mortise;
• support multipoint mortise;
• adaptable door type: side hung door whose inner frame is at least 54mm on depth;
• SUS304 stainless steel deadbolt and mortise case;
• face plate dimension:option 1:270*22mm, option 2:330*22mm;
  face plate thickness:2.5mm;
• mortise backset:40mm (PS:The backset is the distance from the edge of the door to the center of the bore hole.);
  mortise distance:85mm;
  mortise width (excluding face plate):54mm;
• fire-resistant
• mechanical privacy(double lock): available,handle lift up to pull out
• spindle diameter:8mm*8mm
• net weight:0.58kg
• adaptable electric door lock model:X300, X330, X1, X8, X550, X600
• finish:satin silver

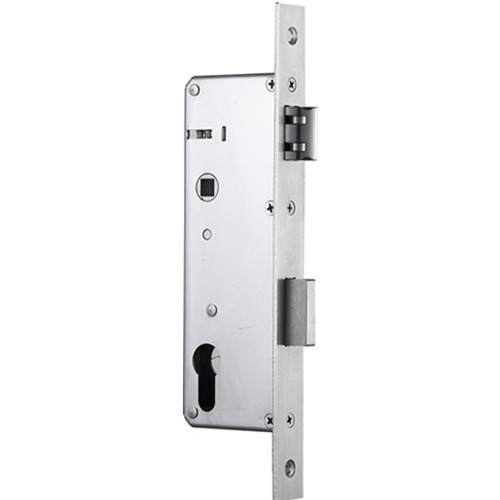

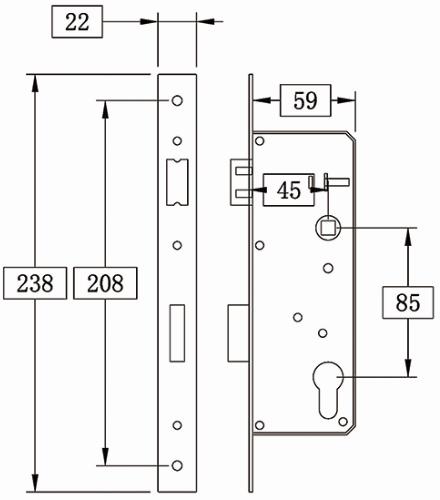

model:S238-4585 Side Single

Feature:

• pure mechanical mortise for electronic lock, adaptable for European profile cylinder;
• adaptable door type: side hung door whose inner frame is at least 59mm on depth;
• SUS304 stainless steel deadbolt and mortise case;
• face plate dimension:238*22mm;
  face plate thickness:2.5mm;
• mortise backset:45mm;
  mortise distance:85mm;
  mortise width (excluding face plate):59mm;
• fire-resistant
• mechanical privacy(double lock): available,handle lift up to pull out
• spindle diameter:8mm*8mm
• net weight:0.59kg
• adaptable electric door lock model:X30, X33, X1, X8, X55, X60
• finish:satin silver

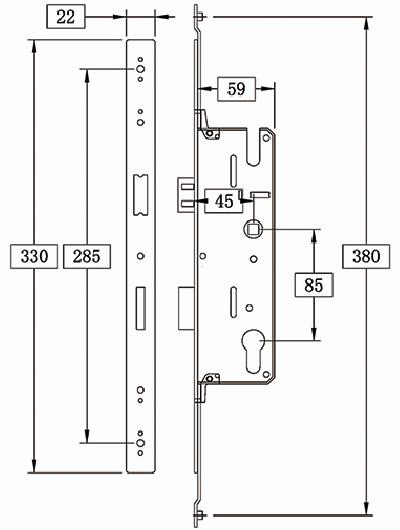

model:D270/330-4585 Side multipoint

Feature:
• pure mechanical mortise for electronic lock, adaptable for European profile cylinder,with multipoint hook for additional mortise;
• support multipoint mortise;
• adaptable door type: side hung door whose inner frame is at least 59mm on depth;
• SUS304 stainless steel deadbolt and mortise case;
• face plate dimension:option 1:270*22mm, option 2:330*22mm;
  face plate thickness:2.5mm;
• mortise backset:45mm;
  mortise distance:85mm;
  mortise width (excluding face plate):59mm;
• fire-resistant
• mechanical privacy(double lock): available,handle lift up to pull out
• spindle diameter:8mm*8mm
• net weight:0.59kg
• adaptable electric door lock model:X30, X33, X1, X8, X55, X60
• finish:satin silver

model:HS330-3085 Sliding Single

Feature:
• pure mechanical mortise for electronic lock, adaptable for European profile cylinder;
• adaptable door type: sliding door or window whose inner frame is at least 44mm on depth;
• SUS304 stainless steel lock case;
• face plate dimension:330*22mm;
  face plate thickness:2.5mm;
• mortise backset:30mm (PS:The backset is the distance from the edge of the door to the center of the bore hole.);
  mortise distance:85mm;
  mortise width (excluding face plate):44mm;
• fire-resistant
• handle lift up to pull out hook: available
• spindle diameter:8mm*8mm
• net weight:0.55kg
• adaptable electric door lock model:X30, X33, X1, X8
• finish:satin silver

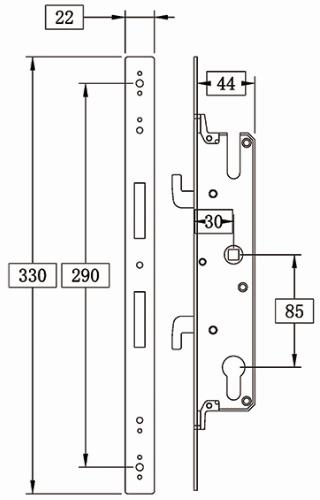

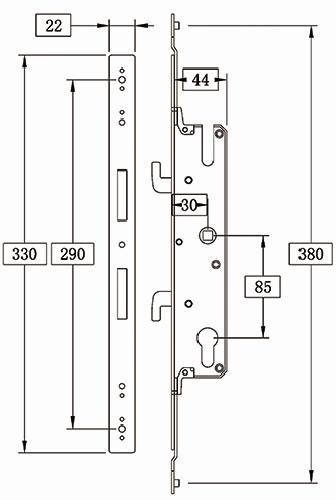

model:HD330-3085 Sliding Multihook

Feature:
• pure mechanical mortise for electronic lock, adaptable for European profile cylinder, with multiple Hook;
• support multipoint mortise;
• adaptable door type: sliding door or window whose inner frame is at least 44mm on depth;
• SUS304 stainless steel lock case;
• face plate dimension:330*22mm;
  face plate thickness:2.5mm;
• mortise backset:30mm (PS:The backset is the distance from the edge of the door to the center of the bore hole.);
  mortise distance:85mm;
  mortise width (excluding face plate):44mm;
  distance between two hook point:380mm;
• fire-resistant
• handle lift up to pull out hook: available
• spindle diameter:8mm*8mm
• net weight:0.57kg
• adaptable electric door lock model:X30, X33, X1, X8
• finish:satin silver

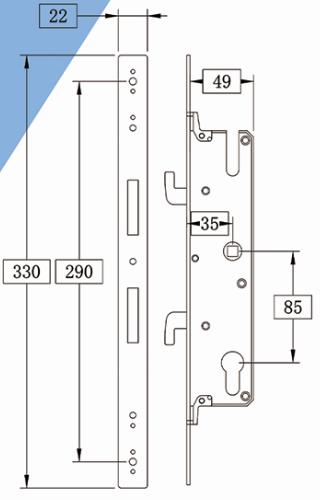

model:HS330-3585 Sliding Single

Feature:
• pure mechanical mortise for electronic lock, adaptable for European profile cylinder;
• adaptable door type: sliding door or window whose inner frame is at least 49mm on depth;
• SUS304 stainless steel lock case;
• face plate dimension:330*22mm;
  face plate thickness:2.5mm;
• mortise backset:35mm;
  mortise distance:85mm;
  mortise width (excluding face plate):49mm;
• fire-resistant
• handle lift up to pull out hook: available
• spindle diameter:8mm*8mm
• net weight:0.55kg
• adaptable electric door lock model:X30, X33, X1, X8
• finish:satin silver

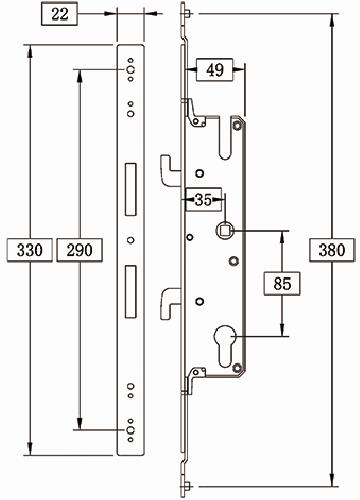

model:HD330-3585 Sliding Multihook

Feature:
• pure mechanical mortise for electronic lock, adaptable for European profile cylinder, with multiple Hook;
• support multipoint mortise;
• adaptable door type: sliding door or window whose inner frame is at least 49mm on depth;
• SUS304 stainless steel lock case;
• face plate dimension:330*22mm;
  face plate thickness:2.5mm;
• mortise backset:35mm;
  mortise distance:85mm;
  mortise width (excluding face plate):49mm;
  distance between two hook point:380mm;
• fire-resistant
• handle lift up to pull out hook: available
• spindle diameter:8mm*8mm
• net weight:0.57kg
• adaptable electric door lock model:X300, X330, X1, X8
• finish:satin silver
