Auxiliary RFID cards kit tool for locks

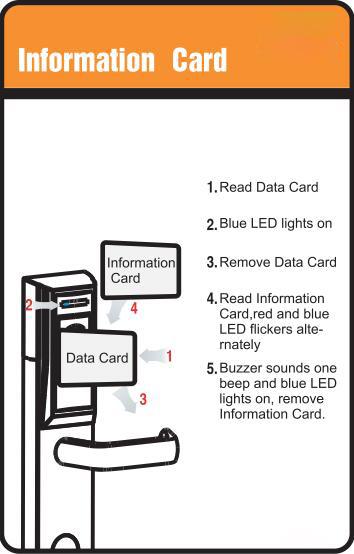

This "Information Card" is used to retrieve recent firmware information from electronic lock or access reader.

step 1:Cut a "Data Card" from current software of yours, then swipe this "Data Card" to the electronic door lock or access reader, and then let the door lock or access reader switch to the data retrieving mode;

step 2:Blue LED light is on and "beep"*1 is made from the electronic door lock or access reader;

step 3:Remove the "Data Card".

step 4:Swipe the "Information Card" before blue light is off and then hold it for a moment in position.

Step 5:The blue LED will flicker for a while. Remove "Information Card" until the LED flickering stops.Now the hardware information will be written into the "information card".

Finally, put the information card on card encoder -> open software -> system maintenance -> lock info -> select check-box "card" -> press Button "Read" to show the door lock firmware information onto PC screen.

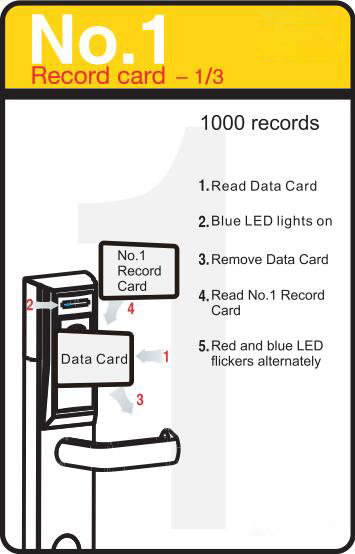

These Record Cards comprise "Record Card No.1","Record Card No.2" and "Record Card No.3" which are used to retrieve recent 1000 pieces open record from electronic lock or access reader.

step 1:Cut a "Data Card" from current software of yours, then swipe this "Data Card" to the electronic door lock or access reader, and then let the door lock or access reader switch to the data retrieving mode;

step 2:Blue LED light is on and "beep"*1 is made from the electronic door lock or access reader;

step 3:Remove the "Data Card".

step 4:Swipe the "Record Card No. 1" before blue light is off and then hold it for a moment in position.

Step 5:The blue LED will flicker for a while. Remove "Record Card No. 1" until the LED flickering stops.Now part one of the door lock/access reader's record will be written into the "Record Card No. 1".

Step 6:After the record Part One is written to "Recard Card No.1", the LED light will stop flickering and turn to solid blue.

step 7:Remove "Record Card No.1"

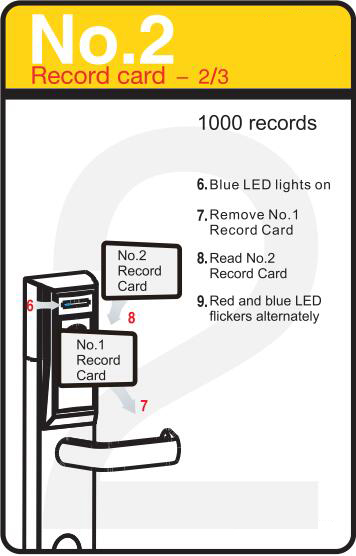

step 8:Present "Record Card No 2" and hold it in position then let the electronic door lock or access reader to read "Record Card No 2".

step 9:LED light will flicker.Part Two of the door lock / access reader record will be completely written into "Record Card No.2" until the LED flickering stops

Step 10:After the record Part Two is written to "Recard Card No.2", the LED light will stop flickering and turn to solid blue.

step 11:Remove "Record Card No.2"

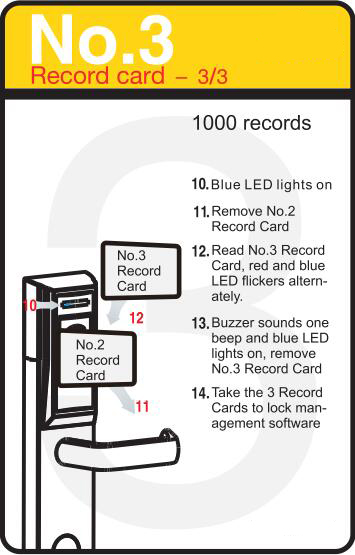

step 12:Present "Record Card No.3" and hold it in position then let the "Record Card No 3". to read open record from electronic door lock or access reader.

step 13:LED light will flicker.Part Three of the electronic door lock / access reader record will be completely written into "Record Card No.3" until the LED flickering stops

step 14:bring "Record Card No.1","Record Card No.2" and "Record Card No.3" to PC. Progress: Open software -> General function list -> open record -> select check-box "card" -> Put "Record Card No.1" onto a valid encoder -> Press button "Read record" -> card encoder's blue LED indicator flickers, wait for a while until the flickering stops -> put "Record Card No.2" onto card encoder instead of "No.1" -> press "OK" on the screen -> card encoder's blue LED indicator flickers, wait for a while until the flickering stops -> press "OK" -> put "Record Card No 3" on the card encoder instead of "No 2" -> card encoder's blue LED indicator flickers, wait for a while until the flickering stops -> and then the recent 1000 pieces of open record from the door lock or access reader will be shown on the PC screen.

This "200 Record Card" is used to get recent 200 pieces of audit trail record from electronic door lock or access reader.

step 1:Cut a "Data Card" from current software of yours, then swipe this "Data Card" to the electronic door lock or access reader, and let the door lock or access reader switch to the data retrieving mode;

step 2:Blue LED light is on and "beep"*1 is made from the electronic door lock or access reader;

step 3:Remove the "Data Card".

step 4:Swipe the "Record Card 200 record" before blue light is off and then hold it for a moment in position.

Step 5:The blue LED will flicker for a while(10-15seconds). Remove "Record Card No. 1" until the LED flickering stops.Now recent 200 pieces of open record will be written into the "Record Card 200 record".

Finally, bring "Record Card 200" to PC. Progress: Open software -> General function list -> open record -> select Check-box "card" -> Put "Record Card 200 record" onto a valid encoder -> Press the Button "Read record" -> card encoder's blue LED indicator flickers, wait for a while until the flickering stops -> and then the recent 200 pieces of open record from the door lock or access reader will be shown on the PC screen.

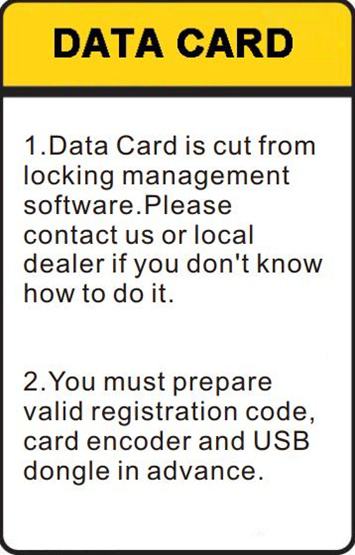

"Data Card": is used to switch the electronic door lock and access reader into data retrieving mode.

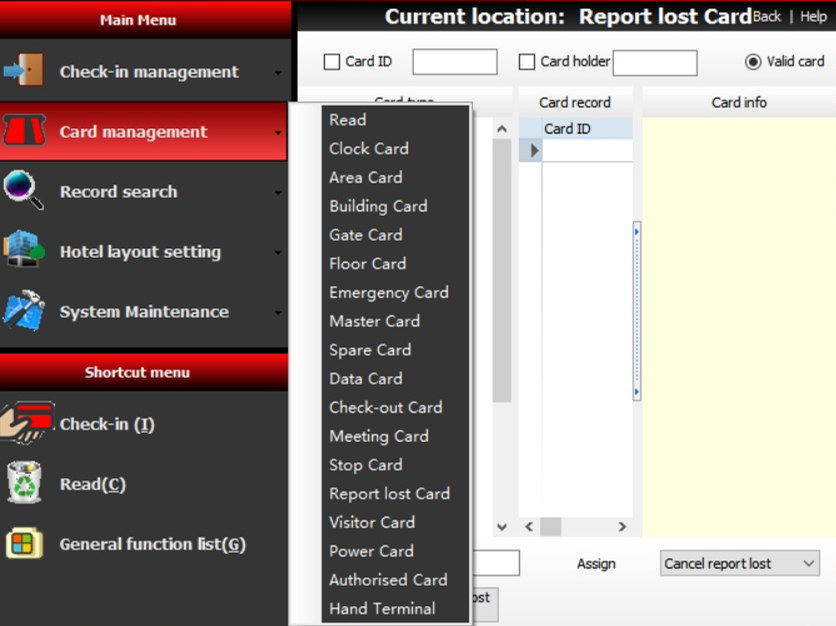

"Data Card": cut from your valid locking management software.If user does not know how it works please contact your local dealer or technical support team of our company.

User must prepare a valid registration code for locking management software, valid USB dongle for software and valid USB card encoder in advance before making this card
