Split Electronic Door Lock–Modern Access Solution for Commercial Properties

Elevate your property security and aesthetic appeal with our sophisticated split electronic door lock, built to deliver tailored design, dependable performance and flexible access control for hotels, rental apartments and student dormitories. Its highlight is the distinctive circular reader, creating a striking floating visual effect while sitting flush on the door panel. Accented by a soft glowing LED ring, this compact reader adds a futuristic minimalist touch. The split design separates the access reader from the lever handle and key cylinder, delivering a clean, uncluttered look. Brushed metal hardware pairs beautifully with wooden doors for timeless elegance. This lock supports three access modes: convenient Bluetooth mobile app unlocking, RFID smart cards for daily use and mechanical keys as a reliable electronic backup, eliminating single-point failure risks for high-traffic commercial spaces. Constructed with heavy-duty stainless steel lock plates and reinforced bolts, it resists prying and forced entry. The split layout also streamlines installation and maintenance; the reader can be serviced without removing the full handle assembly, cutting operational downtime for property managers. Balancing beauty and practicality, this lock fits both modern and classic interiors. Ideal for hospitality, rental housing and student accommodation, it offers premium security and refined styling to upgrade your commercial property.

Equipped with a pseudo-floating sensor reader,this electronic lock wows onlookers like futuristic technology.

Lock body appearance:

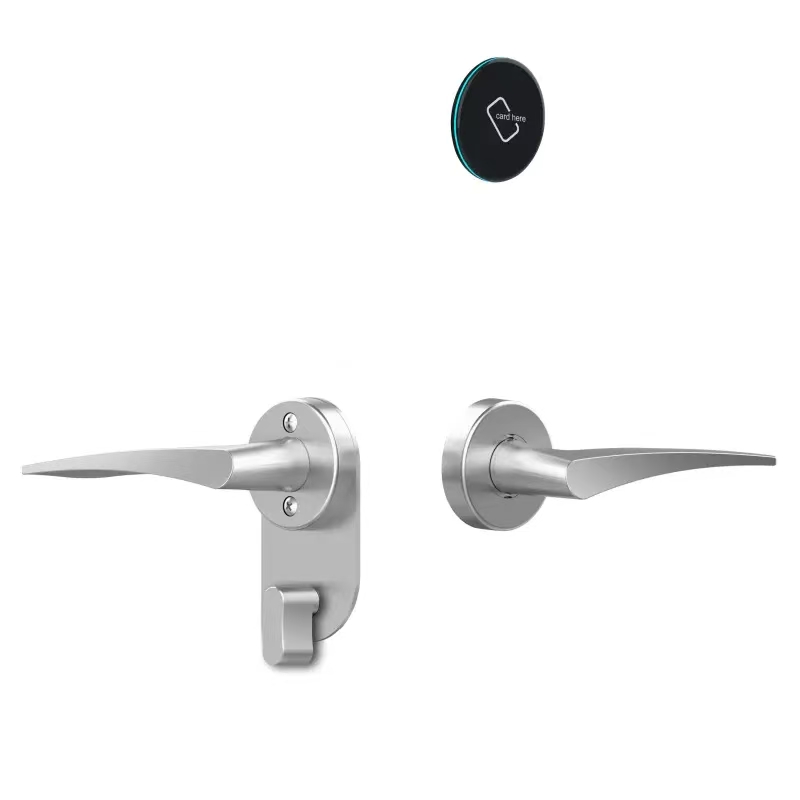

 pseudo-floating sensor reader for replacing vingcard lock,silver finish color

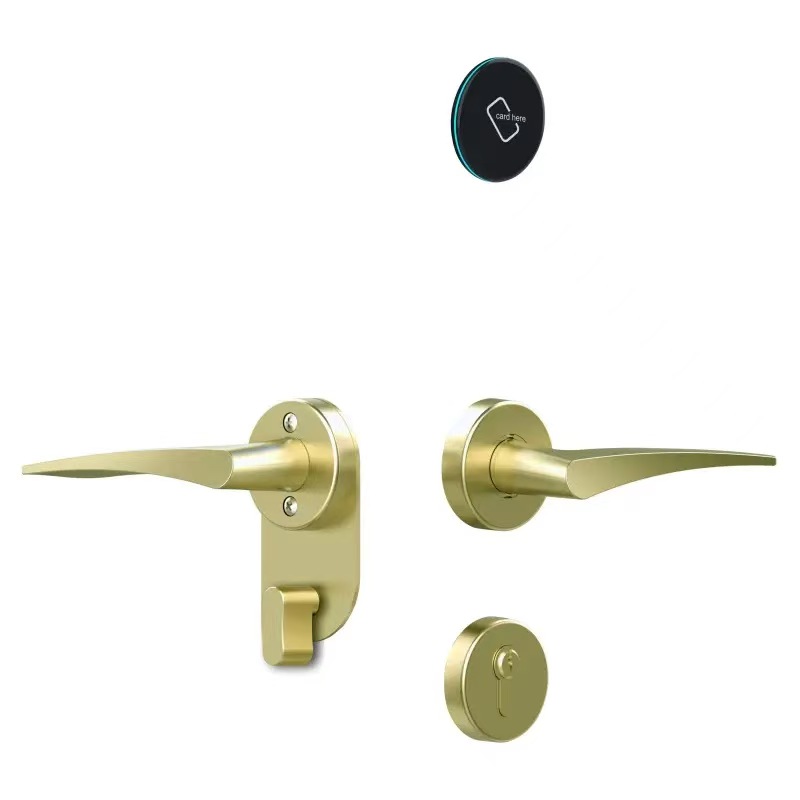

pseudo-floating sensor reader replacing vingcard essence lock black color

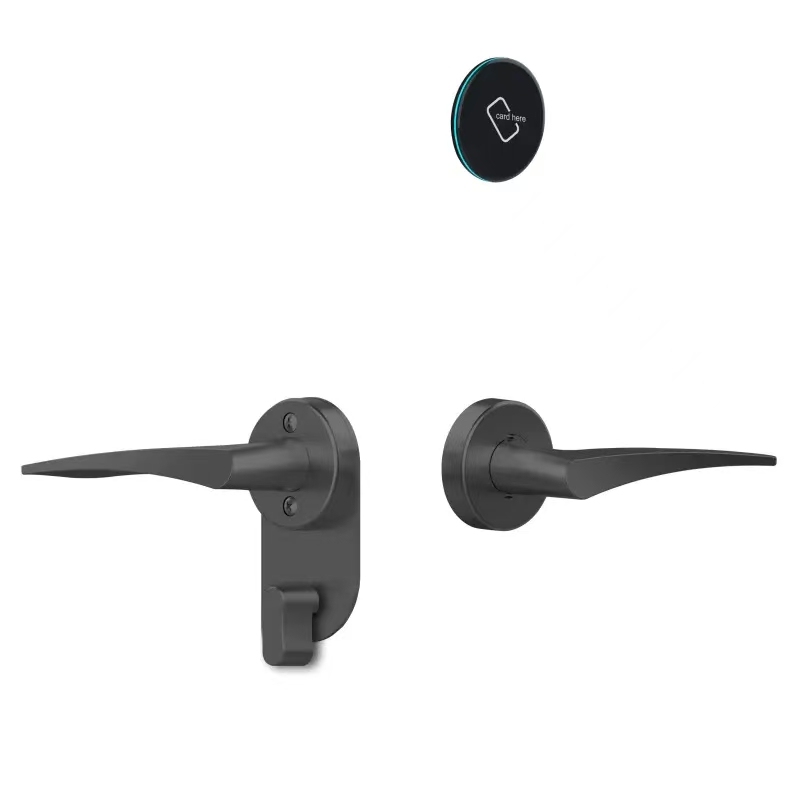

pseudo-floating sensor reader replacing vingcard essence lock black color

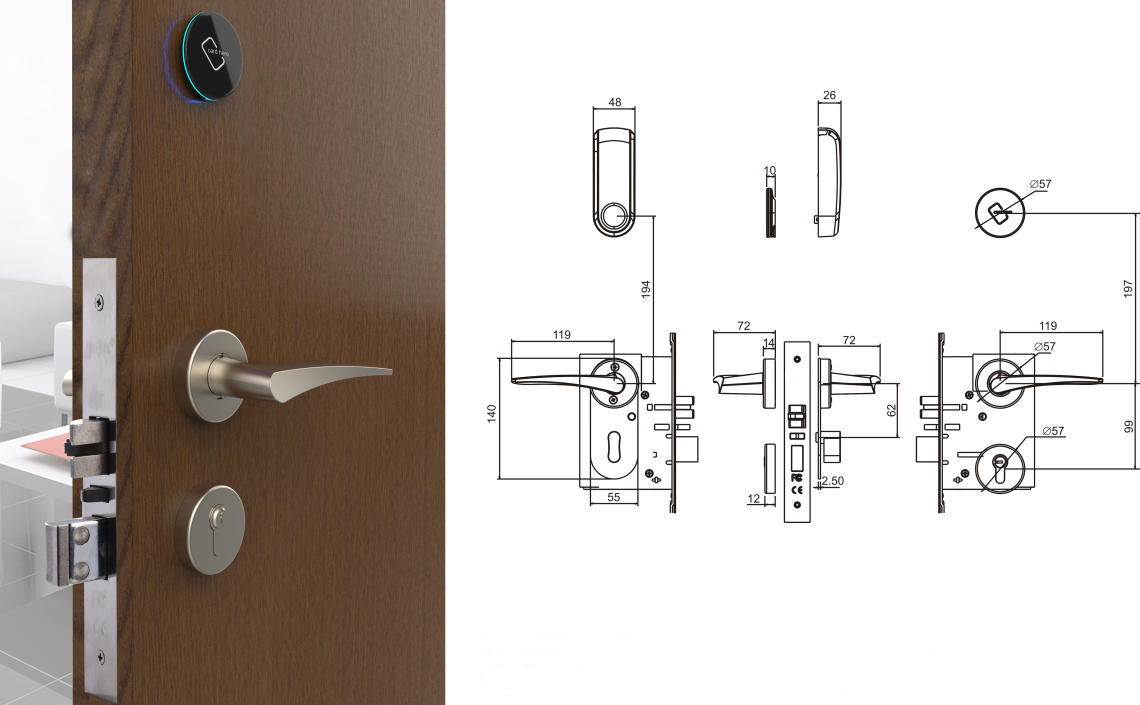

Lock Panel Scheme:




Exploded Installation demo:

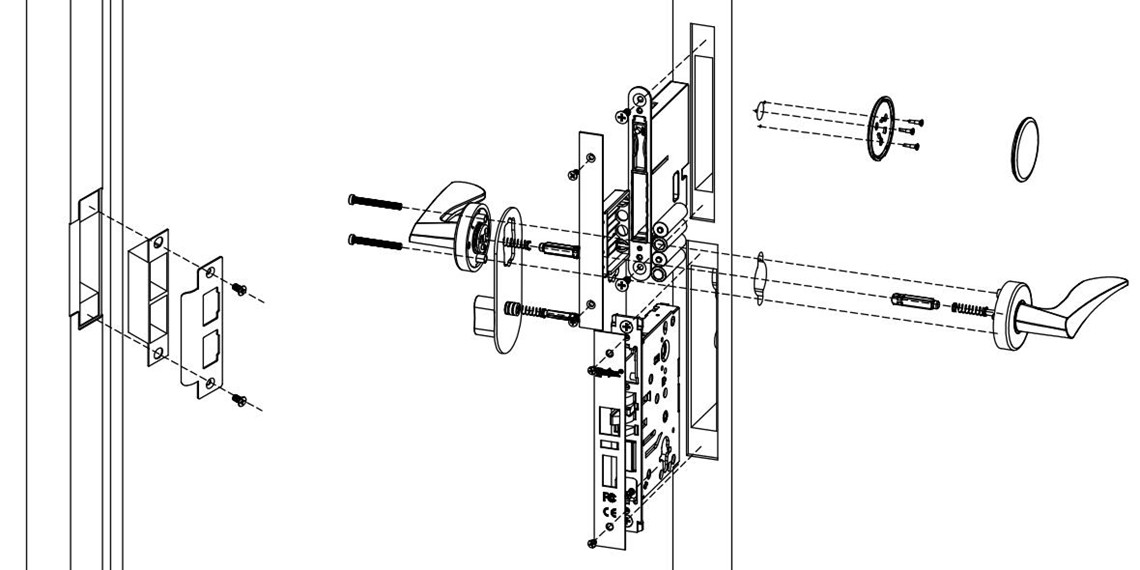

installation way of XF1665-A0

installation option A0:embedded battery case in the door, without cylinder, without back part

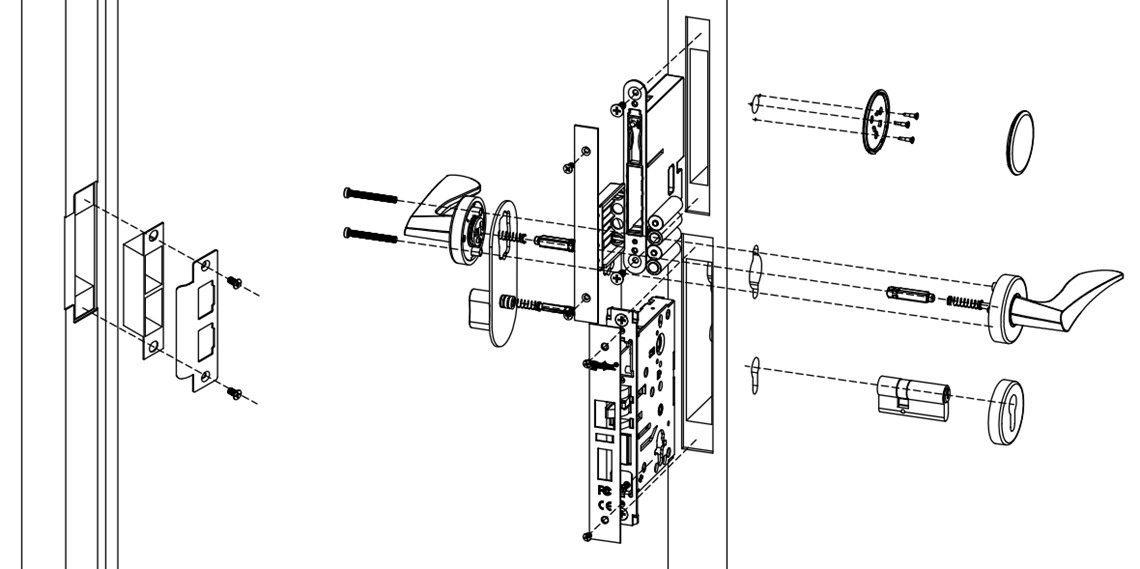

installation way of XF1665-A1

installation option A1:embedded battery case in the door, with cylinder, without back part

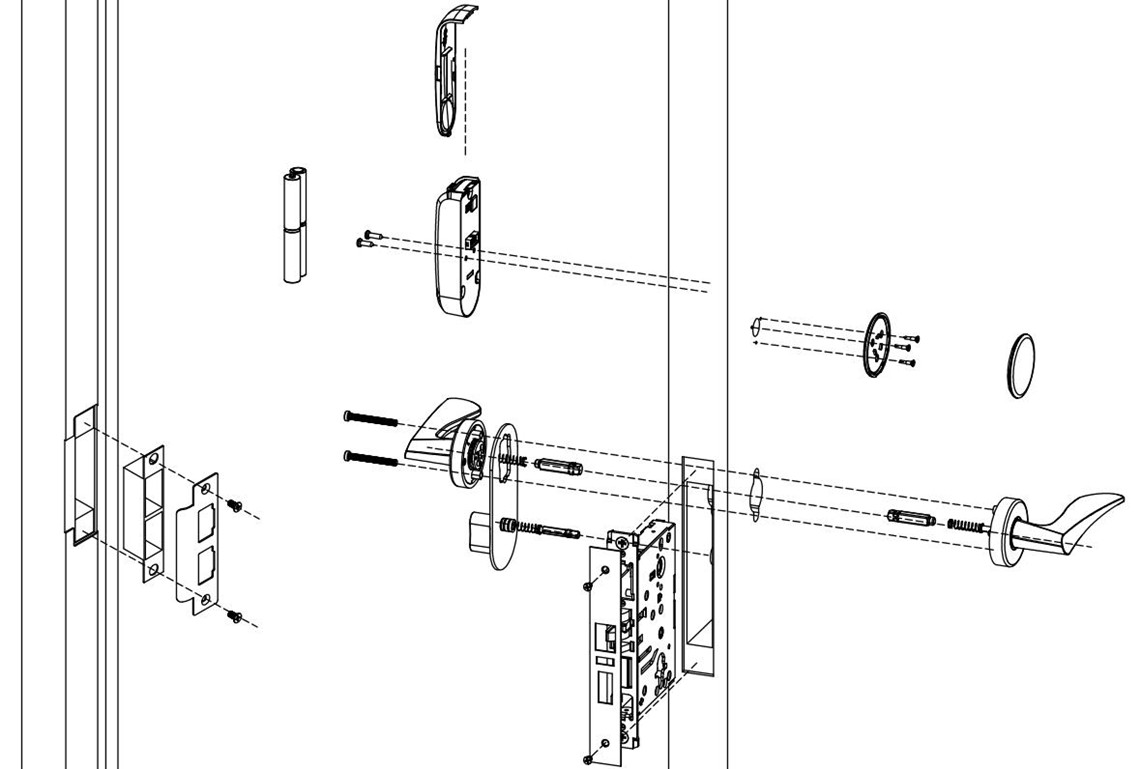

installation way of XF1665-B0

installation option B0:with battery case on back side, without cyllnder

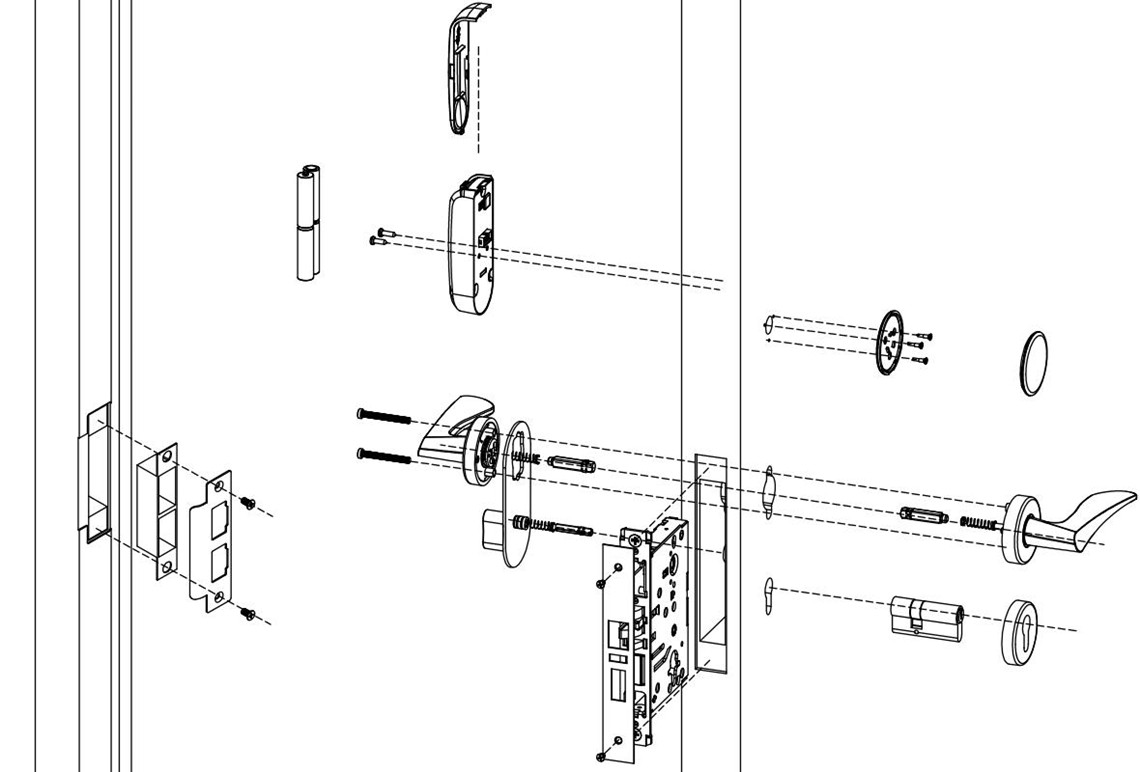

installation way of XF1665-B1

installation option B1:with battery case on back side,with cylinder






Open Methods:

RFID proximity backup key

override metal key

proximity key card

RFID key card

BLE bluetooth lock

bluetooth via App(optional)

Finish Options:

satin silver finish

Satin Silver

polished silver finish

Polished Silver

lock with polished gold finish

Satin Gold

matt black finish

Matt Black

Handle Lever Options:

handle lever 15

handle lever No.15

pseudo-floating sensor Lock Specification:

  • model name:Model XF1665
  • front panel size:Height:290.4mm, Width:77.7mm;
    back panel size:Height:305.5mm, Width:77.7mm;
  • gross weight:2.95kg per lockset when configed with M3 mortise;
            3.15kg per lockset when configed with M1 ANSI type mortise including package;
  • major metal material:lever: Zinc Alloy,mortise: stainless steel and iron;
  • mortise options:60mm backset (2-3/8 inches) ANSI mortise M3 or 70mm backset (2-3/4 inches) ANSI 5 latches mortise M1;
  • deadbolt type:mechanical deadbolt;
  • adaptable door thickness:30mm to 55mm;
  • bluetooth key function: optional;
  • key cards type:Mifare S50 1K key card complies with ISO14443A standard;
  • RFID card working Frequency:13.56MHz;
  • RFID Card reading distance: 0 to 5cm (relying on real electromagnetic environment);
  • EEPROM storage:1000 pieces of recent open record;
  • Power supply:it is powered by 4*1.5V AA (LR6) alkaline batteries / Lithium polymer batteries (user should purchase the quality batteries locally);
  • batteries life span: 12-18months depending on capacity of batteries
  • Working voltage:4.5V-6.5V, if less than 4.7V, low battery warning will be made when presenting any valid administration cards in hotel lock mode; or presenting any valid key cards in DIY lock mode;
  • Dynamic current: < 100mA (standalone version);
  • self-locking feature: when swipe valid key card if user doesn't open the door within 3 seconds, the door will be locked again automatically.
